Torque range...... 0.8 - 40 oz.-in.

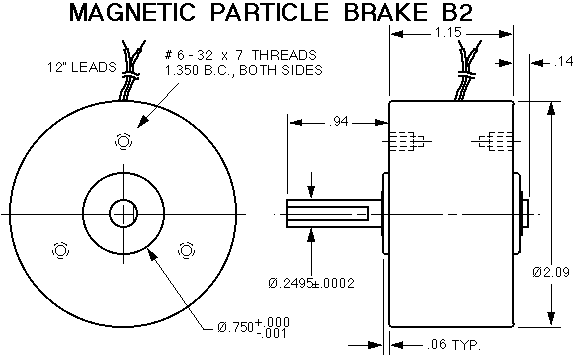

Part number........B2 - (voltage) - 1, for a shaft out 1 side (as shown) Part number........B2 - (voltage) - 2, for shafts out 2 sides Coil voltages.......6, 12, 24, 90 volts D.C.
