Torque range...... 0.1 - 5 oz.-in.

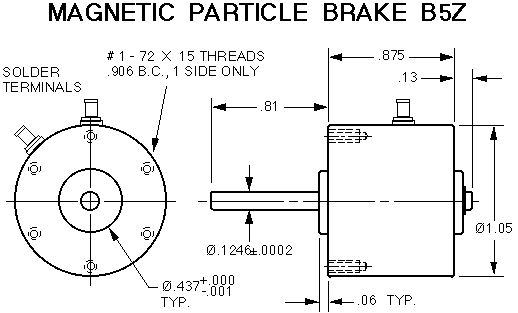

Part number........B5Z - (voltage) - 1, For a shaft out 1 side (as shown)
Part number........B5Z - (voltage) - 1R, For a shaft out 1 side (opposite from mounting holes)
Part number........B5Z - (voltage) - 2, for shafts out 2 sides
Coil voltages.......6, 12, 24 volts D.C.
