Torque range...... 1 - 32 oz.-in.
Part number........C2 - (voltage)
Coil voltages.......6, 12, 24 volts D.C.

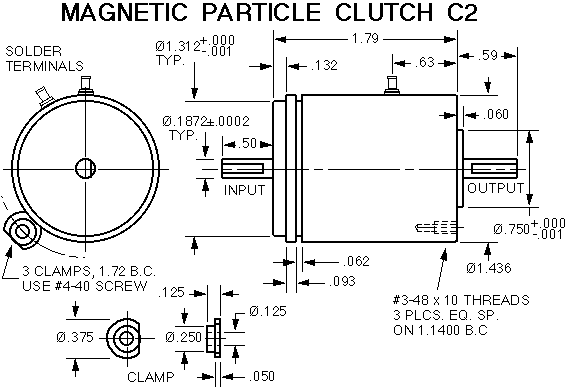

The clutch may be mounted by using the 3 tapped holes on the output end of the case, or ---
The clamps may be used for mounting on the input end of the case.
The servo clamps fit in the groove in the case and pinch the case against your mounting plate.
