Enclosed Power Supply

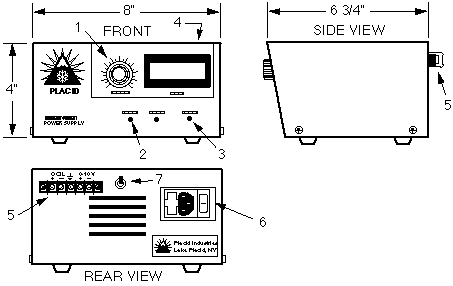

Enclosed Power Supply Drawing
  1. Percent Rated Current Potentiometer
  2. SPAN MAX. - potentiometer, sets the 100 percent output current.
  3. SPAN MIN. - potentiometer, sets the zero output current.
  4. Liquid Crystal Digital Ammeter : 3-1/2 digits
  5. Terminal Strip - for : D.C. output, &
    - -Model PS-(voltage)-MC : Ground, & 0-10 Volt Input Signal
    - -Model PS-(voltage)-MCF : Follower Arm Potentiometer terminals
  6. A.C. Input, A.C. Power On/Off Switch, Input Fuse
  7. Switch - for selecting between the internal (% Rated Current Potentiometer) and the external (Follower Arm) potentiometer - On PS-(voltage)-MCF models only.
