Torque range...... 0.3 - 15 lb.-in.

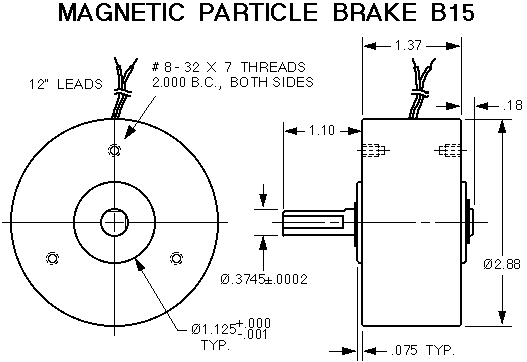

Part number........B15 - (voltage) - 1, for a shaft out 1 side (as shown)
Part number........B15 - (voltage) - 2, for shafts out 2 sides
Coil voltages.......6, 12, 24, 90 volts D.C.
Drawing for B15-H Hollow Shaft version
