Torque range...... 1 - 60 lb.-in.

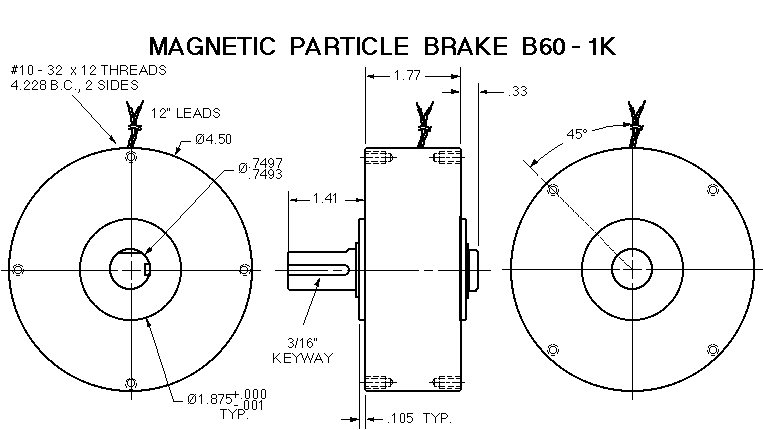

Part number........B60 - (voltage) - 1K, for a shaft out 1 side (as shown)
Coil voltages.......6, 12, 24, 90 volts D.C.
