Torque range...... 9 - 250 oz.-in.

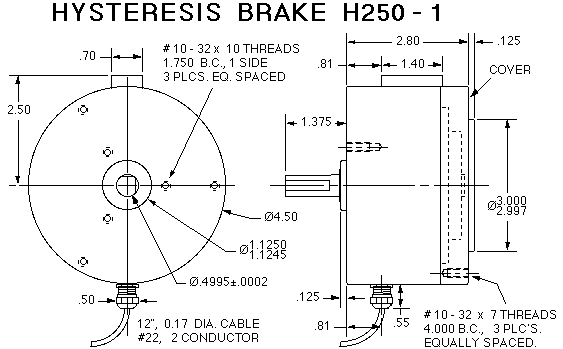

Part number........H250 - (voltage) - 1, ....shaft extends on 1 side (as shown)
Part number........H250 - (voltage) - 2, ....shaft extends on both sides
Part number........H250 - (voltage) - 3, ....shaft extends on cover side only
Coil voltages.......6, 12, 24, 90 volts D.C.
