Placid Industries - Drawings, Photographs & Data Sheets


Drawings are in .GIF format, so can be viewed using Netscape Navigator or Internet Explorer.
Go to our CAD download page for drawings in .DXF format.



Magnetic Particle Brakes
Model Rated Torque Drawings Photographs Data Sheets
(Acrobat .pdf format)
Solid Shaft Hollow Shaft
1 Side 2 Sides
B5Z 5 oz.-in. B5Z drawing Not
Available		 B5Z photo B5Z data sheet
B1 16 oz.-in. B1-1 drawing B1-2 drawing B1 photo B1 data sheet
B2 40 oz.-in. B2 drawing B2 photo B2 data sheet
B6 6 lb.-in. B6 drawing B6 photo B6 data sheet
B15 15 lb.-in. B15 drawing B15-H drawing B15 photo B15 data sheet
B35 35 lb.-in. B35 drawing B35-H drawing B35 photo B35 data sheet
B60 60 lb.-in. B60-1F drawing
B60-1K drawing		 Not
Available		 B60-H drawing B60 photo B60 data sheet
B115 115 lb.-in. B115-1 drawing B115-H drawing B115 photo B115 data sheet
B150 150 lb.-in. B150-1 drawing B150-H drawing B150 photo B150 data sheet
B220 220 lb.-in. B220 drawing Not Available B220 photo B220 data sheet
Only model B1-2 (2 sided) requires a different drawing from the 1 sided version.

Magnetic Particle Clutches
Model Rated Torque Drawings Photographs Data Sheets
Acrobat .pdf format
C2 2 lb.-in. C2 drawing C2 photo C2 data sheet
C5 5 lb.-in. C5 drawing C5 photo C5 data sheet
C15 15 lb.-in. C15 drawing C15 photo C15 data sheet
C35 35 lb.-in. C35 drawing C35 photo C35 data sheet
C70 70 lb.-in. C70 drawing C70 photo C70 data sheet
C130 130 lb.-in. C130 drawing C130 photo C130 data sheet
Open Power Supply Drawing       Enclosed Power Supply Drawing

Ammeter for Open Power Supply Drawing

Hysteresis Brakes
Model Rated Torque Drawings Photographs Data Sheets
Acrobat .pdf format
Solid Shaft
1 Side 2 Sides
H11 11 oz.-in. H11-1 drawing H11-2 drawing H11 photo H11 data sheet
H35 35 oz.-in. H35-1 drawing H35-2 drawing H35 photo H35 data sheet
H85 85 oz.-in. H85-1 drawing H85-2 drawing H85 photo H85 data sheet
H140 140 oz.-in. H140-1 drawing H140-2 drawing H140 photo H140 data sheet
H250 250 oz.-in. H250-1 drawing H250-2 drawing H250 photo H250 data sheet
Patented Cog-Buster keeps slip torque smooth.


Constant Tension Accessories
Model Name Drawings

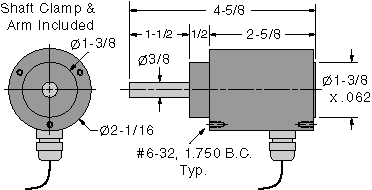

F Follower Arm Potentiometer Follower Arm Pot. drawing

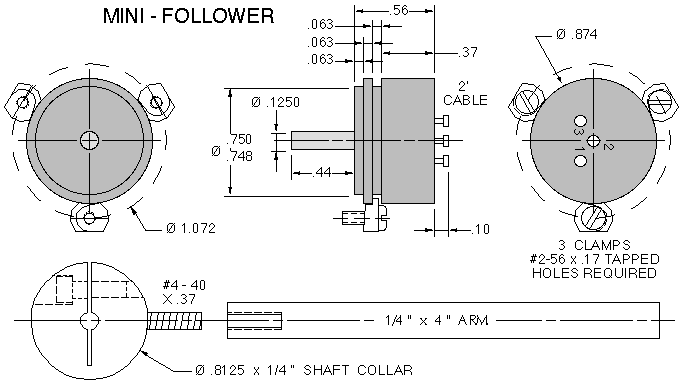

MF Mini-Follower Arm Potentiometer Mini-Follower Arm Pot. drawing

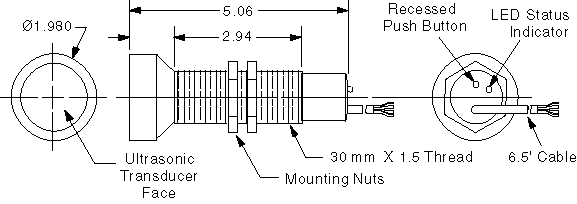

U-S Ultrasonic Sensor Ultrasonic Sensor drawing
