Hysteresis Brake H35 Photograph

Torque range...... 0.7 - 35 oz.-in.
Part number........H35 - (voltage ) - 1, .....shaft extends on 1 side
Part number........H35 - (voltage ) - 2, .....shaft extends on 2 sides
Part number........H35 - (voltage ) - 3, .....shaft extends on cover side only

Coil voltages....... 6, 12, 24 volts D.C.

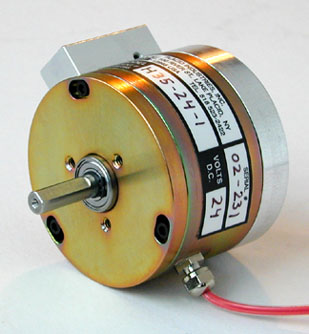

H35 Brake Photo
Model H35-1
