Hysteresis Brake H85 Photograph

Torque range...... 3 - 85 oz.-in.

Part number........H85 - (voltage) - 1, ....shaft extends on 1 side (as shown)
Part number........H85 - (voltage) - 2, ....shaft extends on both sides
Part number........H85 - (voltage) - 3, ....shaft extends on cover side only

Coil voltages.......6, 12, 24, 90 volts D.C.

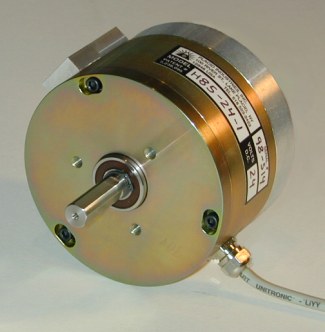

H85 photo
Model H85-1
