Magnetic Particle Brake B1 Photograph
Torque range...... 0.6 - 16 oz.-in.
Part number........B1 - (voltage ) - 1F, .....shaft, with flat, extends on 1 side (same side as mounting holes)
Part number........B1 - (voltage ) - 1FR, .....shaft, with flat, extends on reverse side from mounting holes only
Part number........B1 - (voltage ) - 2F, .....shaft, with flat, extends on 2 sides
Coil voltages.......6, 12, 24 volts D.C.

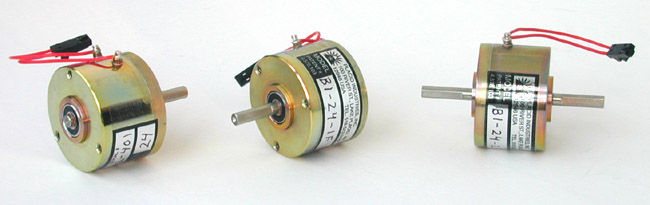

(Left to right) Model B1-1FR, B1-1F, B1-2F
