Magnetic Particle Brake B115 Photograph

Torque range...... 2.5 - 115 lb.-in.
Part number........B115 - (voltage ) - 1, .....shaft extends on 1 side
Part number........B115 - (voltage ) - H, .....hollow shaft

Coil voltages.......6, 12, 24, 90 volts D.C.

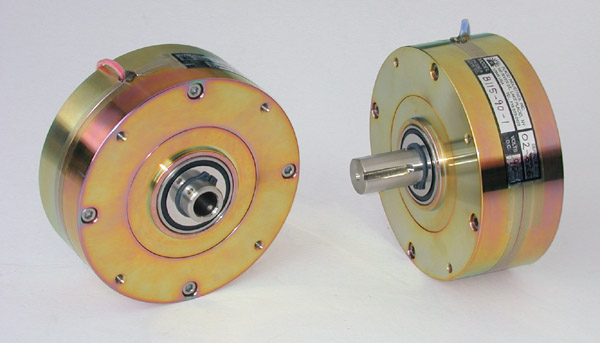

Brake B115 photo
(Left to right) Model B115-H, B115-1
