Magnetic Particle Brake B15 Photograph
Torque range...... 0.3 - 15 lb.-in.
Part number........B15 - (voltage ) - 1, .....shaft extends on 1 side
Part number........B15 - (voltage ) - 2, .....shaft extends on both sides
Part number........B15 - (voltage ) - H, .....hollow shaft
Coil voltages.......6, 12, 24, 90 volts D.C.

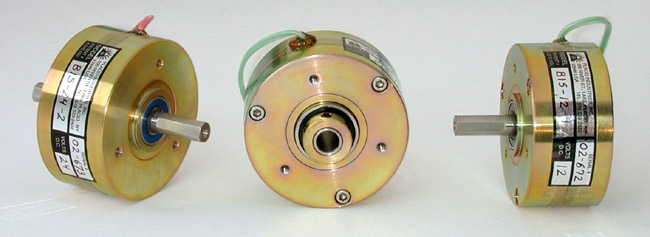

(Left to right) Model B15-2, B15-H, B15-1
