Magnetic Particle Brake B35 Photograph
Torque range...... 0.5 - 35 lb.-in.
Part number........B35 - (voltage ) - 1, .....shaft extends on 1 side
Part number........B35 - (voltage ) - 2, .....shaft extends on both sides
Part number........B35 - (voltage ) - H, .....hollow shaft
Coil voltages.......6, 12, 24, 90 volts D.C.

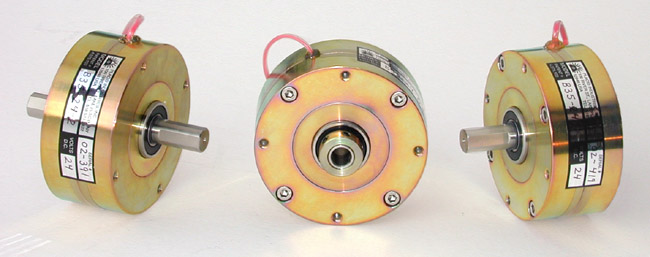

(Left to right) Model B35-2, B35-H, B35-1
