Magnetic Particle Brake B5Z Photograph
Torque range...... 0.1 - 5 oz.-in.
Part number........B5Z - (voltage ) - 1, .....shaft extends on 1 side (same side as mounting holes)
Part number........B5Z - (voltage ) - 1R, .....shaft extends on reverse side from mounting holes only
Part number........B5Z - (voltage ) - 2, .....shaft extends on 2 sides
Coil voltages.......6, 12, 24 volts D.C.

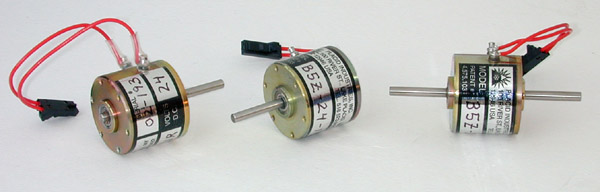

(Left to right) Model B5Z-1R, B5Z-1, B5Z-2
