Magnetic Particle Brake B6 Photograph
Torque range...... 0.3 - 6 lb.-in.
Part number........B6 - (voltage ) - 1, .....shaft extends on 1 side
Part number........B6 - (voltage ) - 2, .....shaft extends on both sides
Coil voltages.......6, 12, 24, 90 volts D.C.

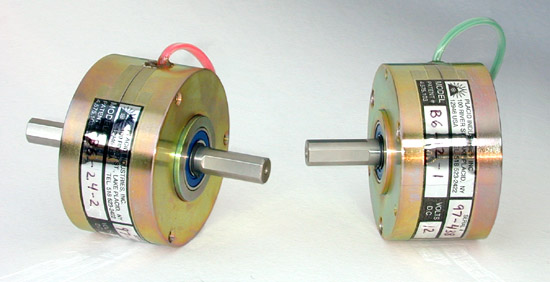

(Left to right) Model B6-2, B6-1
