Magnetic Particle Brake B60 Photograph
Torque range...... 1 - 60 lb.-in.
Part number........B60 - (voltage ) - 1F, .....shaft extends on 1 side, 2 flats at 90 degrees
Part number........B60 - (voltage ) - 1K, .....shaft extends on 1 side, 3/16" keyway and a flat at 90 degrees
Part number........B60 - (voltage ) - H, .....hollow shaft
Coil voltages.......6, 12, 24, 90 volts D.C.

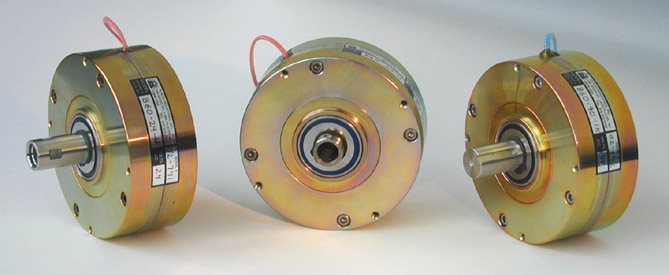

(Left to right) Model B60-1F, B60-H, B60-1K
