Torque range...... 0.6 - 16 oz.-in.

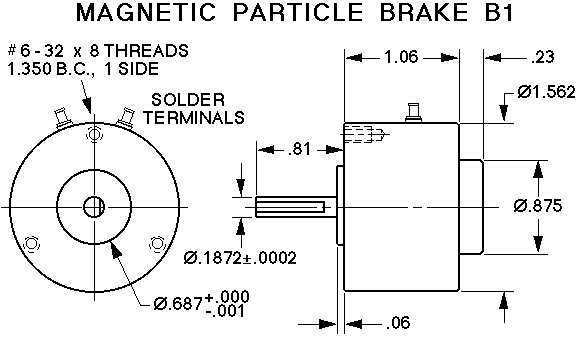

Part number........B1 - (voltage) - 1, For a shaft out 1 side. (as shown)
Part number........B1 - (voltage) - 1R, For a shaft out opposite side only. (See B1-2 drawing.)
Coil voltages.......6, 12, 24 volts D.C.
Drawing for B1-2 solid shaft out 2 sides
