Torque range...... 0.6 - 16 oz.-in.

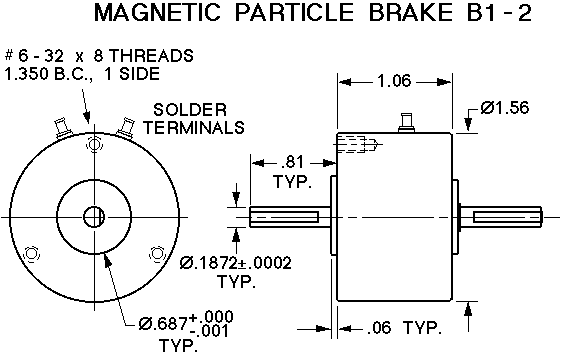

Part number........B1 - (voltage) - 2, For a shaft out 2 sides. (as shown)
Part number........B1 - (voltage) - 1R, For a shaft out opposite side from mounting holes only.
Coil voltages.......6, 12, 24 volts D.C.
Drawing for B1-1 solid shaft out 1 side.
